Exposed dipole array, 3/5.5 dBd, dual, field adj., 118-138 MHz
Exposed dipole array, 3/5.5 dBd, dual, field adj., 118-138 MHz

SD235D-SF1PASNM(D00B)

Exposed dipole array, 3/5.5 dBd, dual, field adj., 118-138 MHz

Regular price $0.00
/

Only 0 items in stock!
• A dual antenna perfectly suited for multicoupled systems due to its broad band

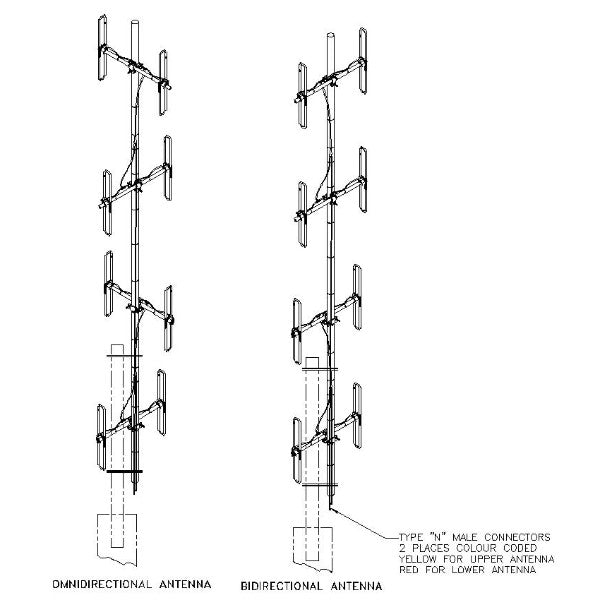

• Omni-directional (3 dBd) or bi-directional (5.5 dBd) pattern easily changed in the field
• N-Male connector
• 300 W power handling capability
Electrical
average input power max (W) 300
connector N-Male
frequency range (MHz) 118 to 138
gain nominal (dBd) 3 dBd omni/ 5.5 dBd bi-directional
impedance (Ω) 50
lightning protection DC ground

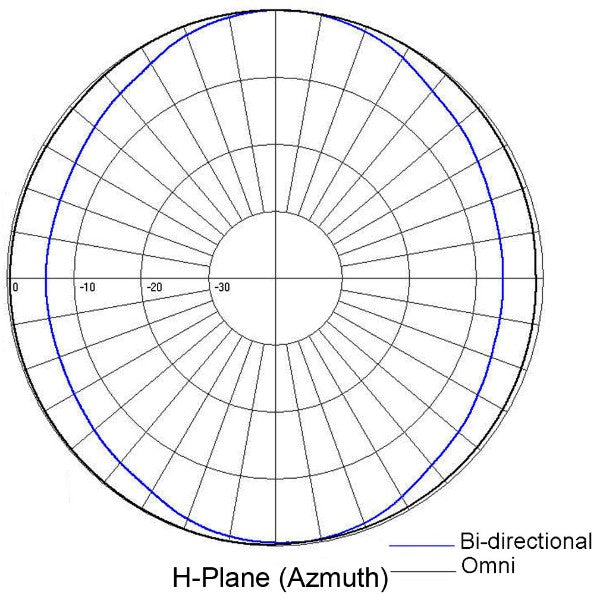

pattern Omni or Bi-directional, Adjustable
polarization vertical
Mechanical
actual shipping weight (lbs) 165
base pipe diameter 4
base pipe material aluminum
depth (in) 39.25
length height (in) 330
mounting configurations top mount
radiating element material aluminum
shipping dimensions (in) 336x42x12
Width (in) 39.25
Environmental
bending moment 100 mph no ice 3158
lateral thrust 100 mph no ice 316
rated wind velocity no ice 135
temperature range (°C) -40 to 60
