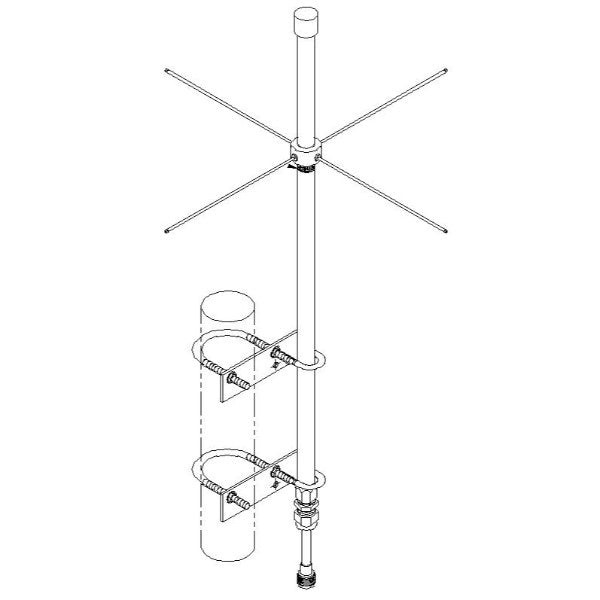

Ground plane omni, 0 dBd, 406-420 MHz
Ground plane omni, 0 dBd, 406-420 MHz


Ground plane omni, 0 dBd, 406-420 MHz

Regular price $0.00

Only 0 items in stock!
• Covers 14 MHz bandwidth without adjustment
• Rugged construction, light weight and easy to install
average input power max (W) 100
bandwidth (MHz) 14
connector N-Female
frequency range (MHz) 406 to 420
impedance (Ω) 50
lightning protection DC ground

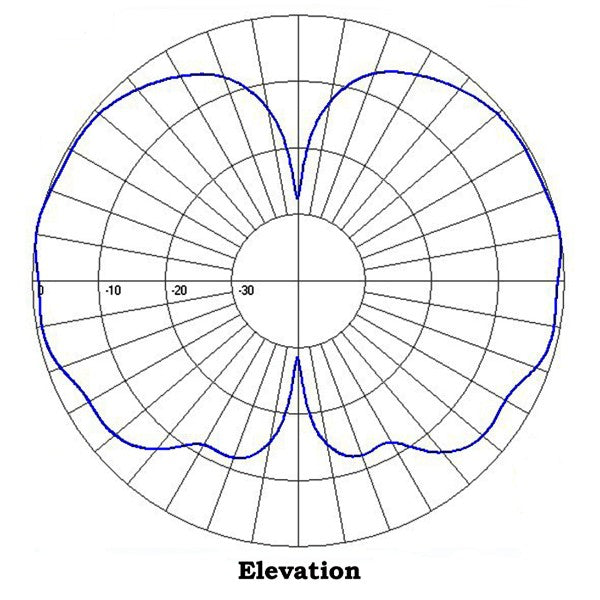

pattern Omni-directional
polarization vertical
actual shipping weight (lbs) 5
base pipe diameter 0.75
base pipe material aluminum
base pipe mounting length 8
depth (in) 16
length height (in) 23
mounting configurations upright
mounting hardware included Clamp135
radiating element material aluminum
radome material PVC
shipping dimensions (in) 3x5x25
Width (in) 16
bending moment 100 mph no ice 0.52
lateral thrust 100 mph no ice 3.43
survival wind velocity no ice 100
temperature range (°C) -40 to 60
