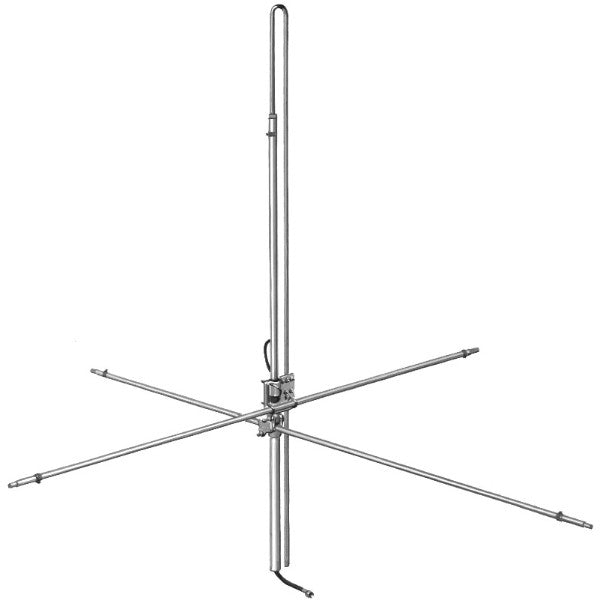

Ground plane omni, 0 dBd, field adjustable, 62-88 MHz
Ground plane omni, 0 dBd, field adjustable, 62-88 MHz

SG101-SF3PASNM

Ground plane omni, 0 dBd, field adjustable, 62-88 MHz

Regular price $0.00
/

Only 0 items in stock!
• 1% bandwidth at 1.5:1, 3% at 2.0:1
• Designed for severe climatic conditions
• Field adjustable
Electrical
average input power max (W) 450
connector N-Male
frequency range (MHz) 62 to 88
lightning protection DC ground

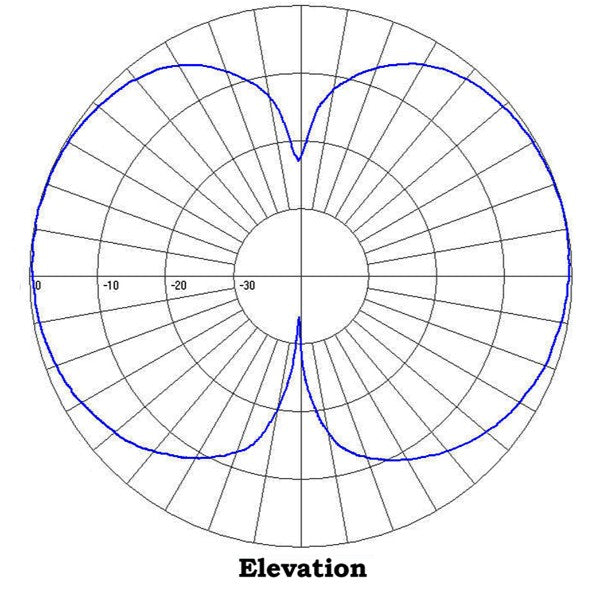

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 30
base pipe diameter 1.9
base pipe mounting length 15
depth (in) 110
length height (in) 80
mounting hardware included Clamp120
radiating element material aluminum
shipping dimensions (in) 126x7x8
Width (in) 110
Environmental
lateral thrust 100 mph no ice 45
rated wind velocity no ice 130
temperature range (°C) -40 to 60
