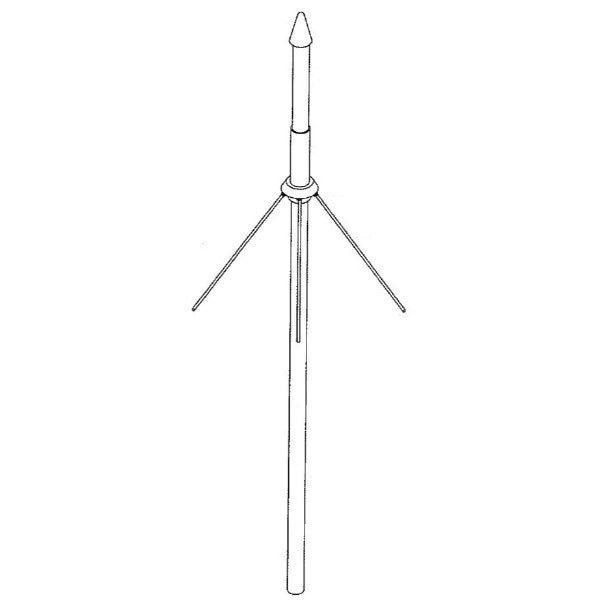

Ground plane omni, 0 dBd, HD, Bird cap, 118-138 MHz
Ground plane omni, 0 dBd, HD, Bird cap, 118-138 MHz

SG238-HF1SNM(BC)

Ground plane omni, 0 dBd, HD, Bird cap, 118-138 MHz

Regular price $0.00
/

Only 0 items in stock!
• Broadband Omni-directional antenna for ground-to-air applications
• Aluminum alloy and stainless steel construction
• Heavy-duty
• Bird cap
Electrical
average input power max (W) 250
connector N-Male
frequency range (MHz) 118 to 136
impedance (Ω) 50
lightning protection DC ground

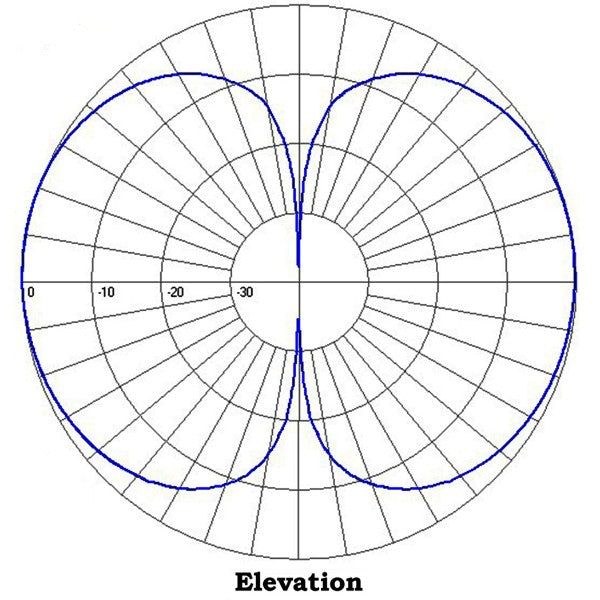

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 28
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 15
depth (in) 26.5
length height (in) 68
mounting configurations upright
mounting hardware included Clamp120SS
radiating element material aluminum
shipping dimensions (in) 72x3x5
Width (in) 26.5
Environmental
bending moment 100 mph no ice 51
lateral thrust 100 mph no ice 31
rated wind velocity no ice 220
temperature range (°C) -40 to 60
