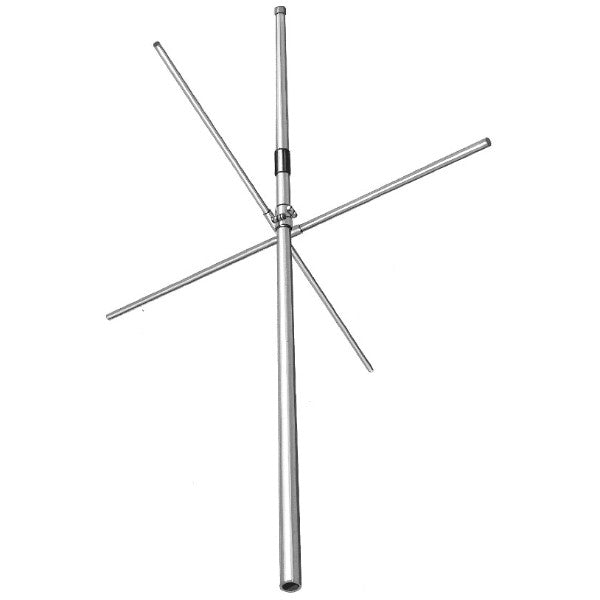

Ground plane omni, 2.5 dBd, 3 MHz bandwidth, N-Female, 138-174 MHz
Ground plane omni, 2.5 dBd, 3 MHz bandwidth, N-Female, 138-174 MHz

SG217-SF2SNF

Ground plane omni, 2.5 dBd, 3 MHz bandwidth, N-Female, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• Frequency adjustable within specified range
• Omni-directional radiation pattern and 2.5 dBd gain
• Lightweight easy to assemble and install
Electrical
average input power max (W) 250
bandwidth (MHz) 3
connector N-Female
frequency range (MHz) 138 to 174
gain nominal (dBi) 2.5
lightning protection DC ground

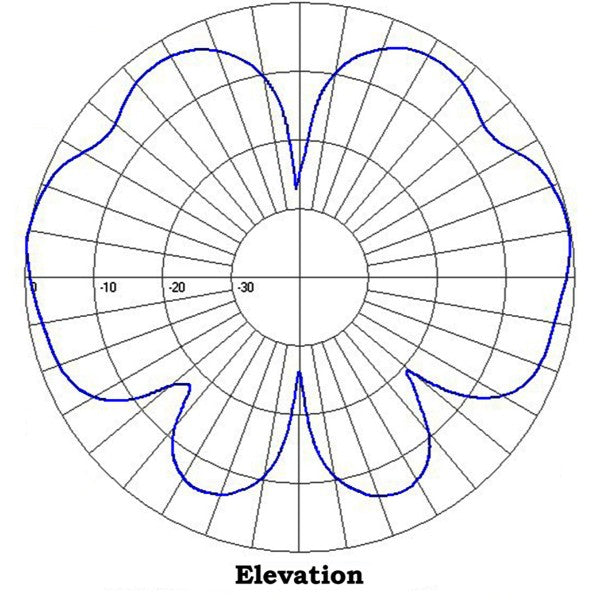

pattern Omni-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 15
base pipe diameter 1.5
base pipe material aluminum
length height (in) 128
mounting hardware included Clamp135
radiating element material aluminum
shipping dimensions (in) 73x5x6
Width (in) 58
Environmental
bending moment 100 mph no ice 224
lateral thrust 100 mph no ice 65
rated wind velocity no ice 125
temperature range (°C) -40 to +60
