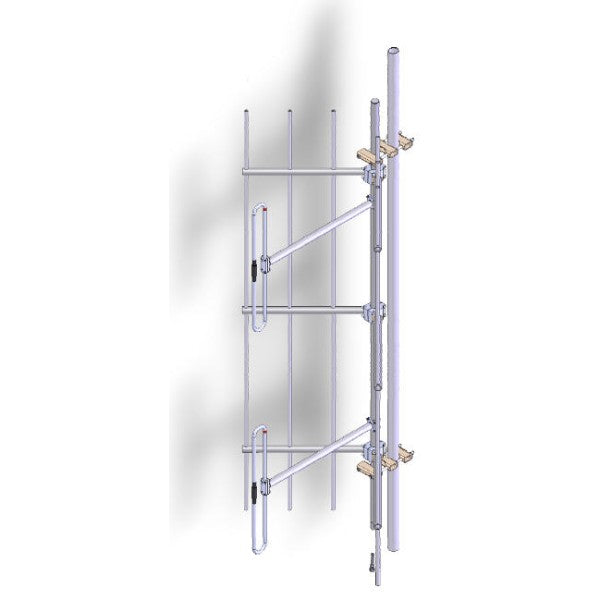

Reflector Ant, 2 dipole, 120 beamwidth, N(f), 138-174 MHz
Reflector Ant, 2 dipole, 120 beamwidth, N(f), 138-174 MHz

SD212R-SF2P120LNF(D00S)

Reflector Ant, 2 dipole, 120 beamwidth, N(f), 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• 120 degrees horizontal beamwidth for VHF simulcast applications
• Two bay stacked dipoles offering 7 dBd gain
• Broadband operation, covering 138-174 MHz full band
Electrical
average input power max (W) 300
connector N-Female
frequency range (MHz) 138 to 174
front to back ratio typ 17
gain nominal (dBd) 7
horizontal beamwidth typ 120
lightning protection DC ground
pattern Directional
polarization vertical
vswr max 1.5 : 1
Mechanical
base pipe diameter 2.38
base pipe material aluminum
depth (in) 42
estimated shipping weight lbs 106
length height (in) 120
mounting configurations side mount
shipping dimensions package 1 124x44x4
shipping dimensions package 2 124x44x4
shipping weight package 1 64
shipping weight package 2 42
Width (in) 45
Environmental
lateral thrust 100 mph no ice 148
rated wind velocity no ice 155
temperature range (°C) -40 to 60
