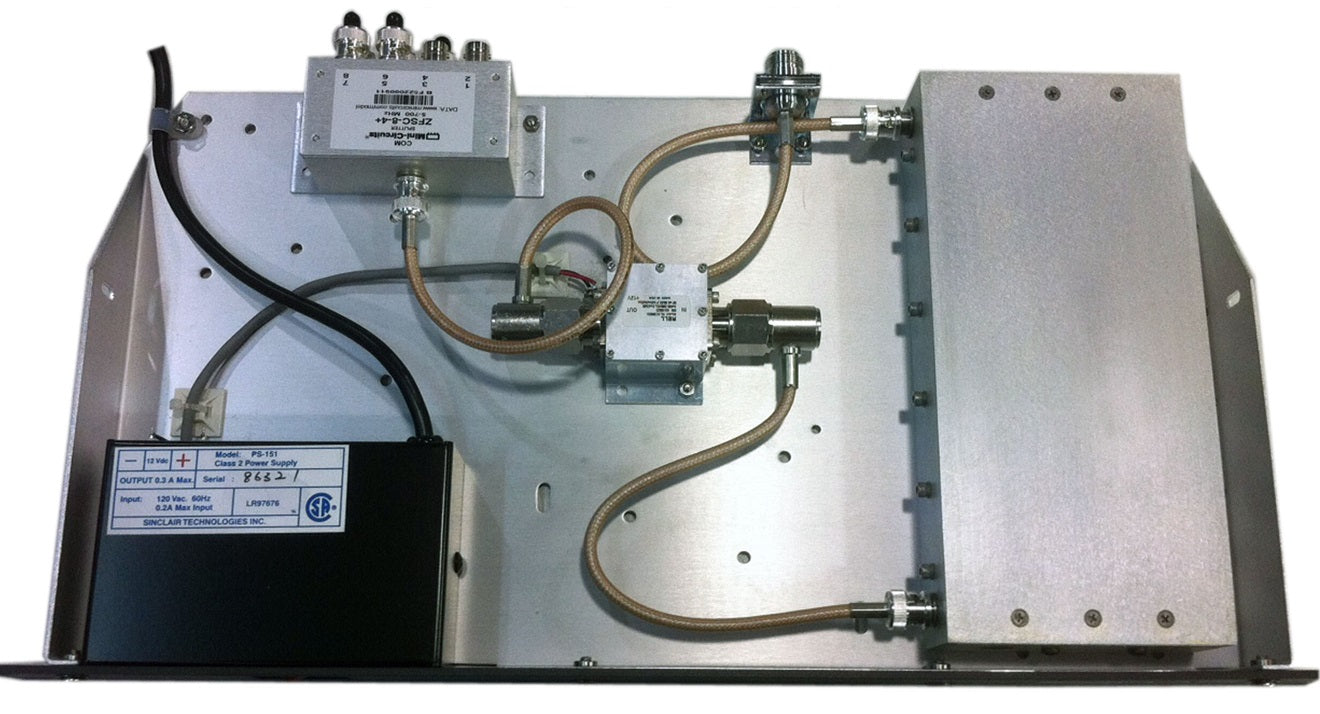

Rx multicoupler, 806-960 MHz
Rx multicoupler, 806-960 MHz

RM4(AA-W)(BB)G(Y)(C)

Rx multicoupler, 806-960 MHz

Regular price $0.00
/

Only 0 items in stock!
Connect 2 to 16 receivers to a single antenna with BNC connectors with 1 R.U. tray Connect 2 to 8 receivers to a single antenna with N-type connectors with 1 R.U. tray For other channel configurations, please contact your Sinclair Sales Representative
Band Cat
118 174 mhz No
130 150 mhz No
350 512 mhz No
746 806 mhz No
806 960 mhz Yes
Performance Features
low pim certified No
pip certified No
Antenna Type
collinear No
corner reflector No
enclosed dipole No
exposed dipole No
ground No
panel No
stealth No
transportation No
whip No
yagi No
Mechanical
actual shipping weight 10
depth 10
finish Alodine and black paint
length height 1.75
mounting configurations 19 inch rack
shipping dimensions 23x18x4
width 19
Electrical
frequency range 806 to 960
impedance 50
input connectors N-Female
input vswr max 1.5 : 1
isolation rx to rx 20
noise figure amplifier typ 1
noise figure system typ 4.1
output connectors BNC-Female or N-Female
output vswr 1.5 : 1
power consumption typ 4
supply voltage 115 VAC
system gain min 2
