Yagi Ant, 9.5 dBd, extended boom, HD, ABK, 148-155 MHz
Yagi Ant, 9.5 dBd, extended boom, HD, ABK, 148-155 MHz

SY206-HF1SNM(E-ABK)

Yagi Ant, 9.5 dBd, extended boom, HD, ABK, 148-155 MHz

Regular price $0.00
/

Only 0 items in stock!

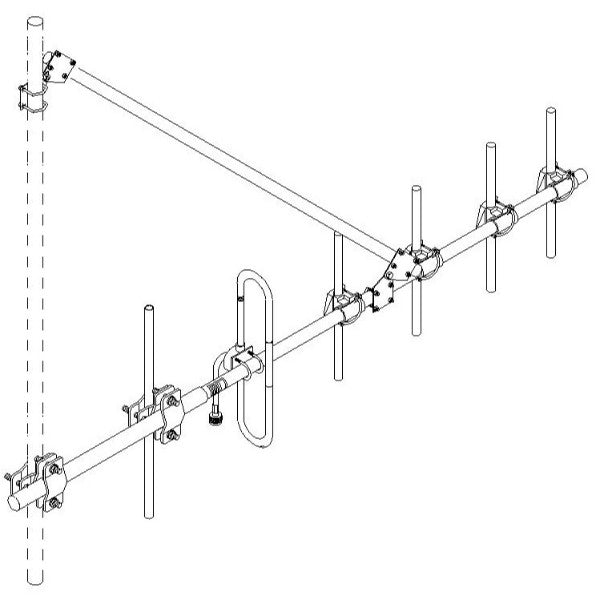

• Six element Yagi with extended boom for end mount
• Heavy duty construction for harsh environment
• DC ground potential for lightning protection
• Black anodized
Electrical
average input power max (W) 250
bandwidth (MHz) 7
connector N-Male
frequency range (MHz) 148 to 155
front to back ratio typ 17
gain nominal (dBi) 9.5
horizontal beamwidth vert pol 60
impedance (Ω) 50
lightning protection DC ground

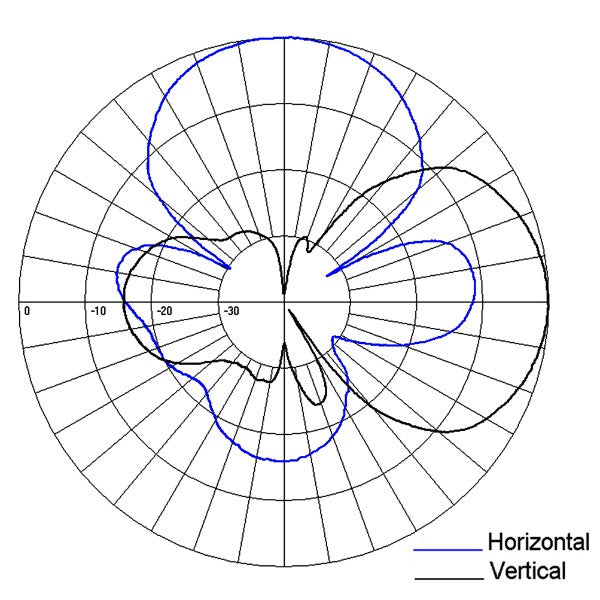

pattern Directional
polarization vertical or horizontal
Mechanical
finish anodize (black)
length height (in) 106
mounting hardware included Clamp017 and Clamp064
radiating element material aluminum
reflector material aluminum
Width (in) 39.4
Environmental
bending moment 100 mph no ice 441
lateral thrust 100 mph no ice 83
rated wind velocity no ice 140
temperature range (°C) -40 to 60
